Fully Automatic Safe Deposit System FD-VX
Robot Safe Deposit Boxes
Safe deposit boxes are essential for financial businesses today.
Fuji Seikoʼs fully automatic safe deposit boxes offer space-saving designs at low cost. The cutting-edge system offers an automated delivery system for customers.
Amid the increasingly fierce competition among financial institutions, safe deposit boxes are one of the operations needed for financial institutions today along with loans, savings, and currency exchange. Fuji Seikoʼs fully automated safe deposit boxes deliver space-saving, compact designs at low cost. The latest system lets customers insert a card and enter PIN to enable automated delivery of the safe deposit box directly to the customer while sitting at a special booth. This fully automated safe deposit box system protects the safety and privacy of customers and offers easy access like an ATM. Fuji Seikoʼs safe deposit box system is the best solution for developing new customers and building a solid base of loyal patrons.

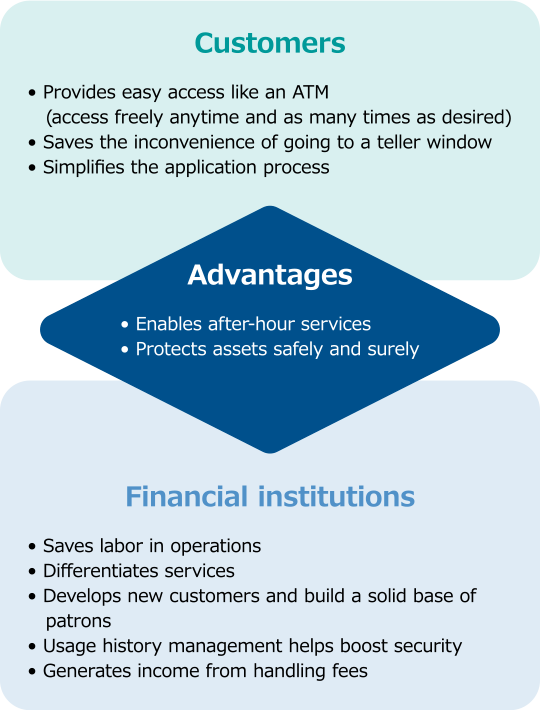

The introduction of fully automatic safe deposit boxes generates advantages for both financial businesses and customers.
Deciding in favor of users to offer peace of mind and convenience at all times.High-end products meet the various needs of safe deposit boxes more flexibly.
Downsized installation space and flexible combination achieve a high level of storage efficiency in the industry.
The forward-looking, unique functions and security features achieve a high level of safety and smooth operation.
By deciding in favor of users, the booth design ensures ease of use, excellent interior comfort, and universal usability.
With excellent burglary resistant, fire-resistant, and earthquake-proof performance, it provides ample protection for customer assets.
Features

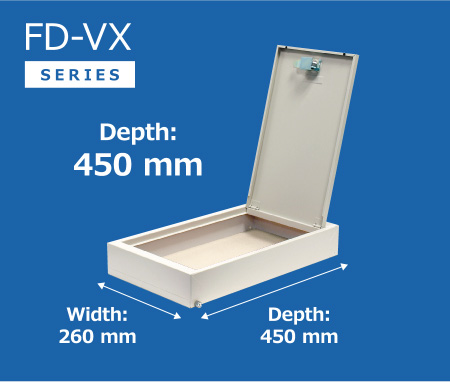

Safe deposit boxes offer a large capacity of 450 mm in depth for ample storage capacity. There are seven heights to choose from.
- Seven heights:
- Height: 145 mm
Storage container capacity:
16,014 sq. cm
(including the key portion) - Height: 70 mm
Storage container capacity:
7,366 sq. cm
(including the key portion) - Height: 170 mm
Storage container capacity:
18,896 sq. cm
(including the key portion) - Height: 95 mm
Storage container capacity:
10,249 sq. cm
(including the key portion) - Height: 195 mm
Storage container capacity:
21,779 sq. cm
(including the key portion) - Height: 120 mm
Storage container capacity:
13,131 sq. cm
(including the key portion) - Height: 200 mm
Storage container capacity:
24,661 sq. cm
(including the key portion)
Safe deposit boxes come in seven types: choose from a depth of 450 mm and heights of 70 mm, 95 mm, 120 mm, 145 mm, 170 mm, 195 mm, and 220 mm.
This type offers a smooth transition from conventional manual-type safe deposit boxes.
The maximum load capacity is 20 kg and allows an intermediate setting from 5 kg to 20 kg to support the floor weight capacity for installation upstairs.
Equipped with a weight sensor, this type detects the storage load to prevent overloading.
In addition, after shipment, all model types allow changes in the box size for efficient operation.
The size of the boxes can be changed to accommodate installation conditions even after shipment.

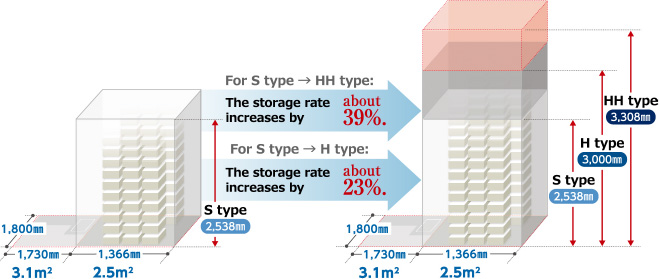

The industryʼs highest level of storage efficiency. Compact installation space and flexibilit

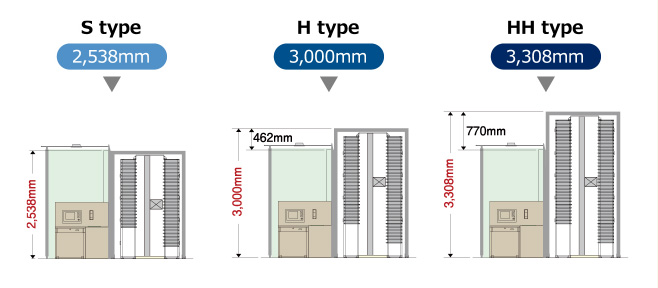

(3 stacks, S type: 154 boxes) The area of safe deposit vault
(3 stacks, HH type: 214 boxes) (3 stacks, H type: 190 boxes) The area of safe deposit vault 2.5 sq. m
It stores from 154 safe deposit boxes to 658 safe deposit boxes in selectable layouts to meet the installation environment.

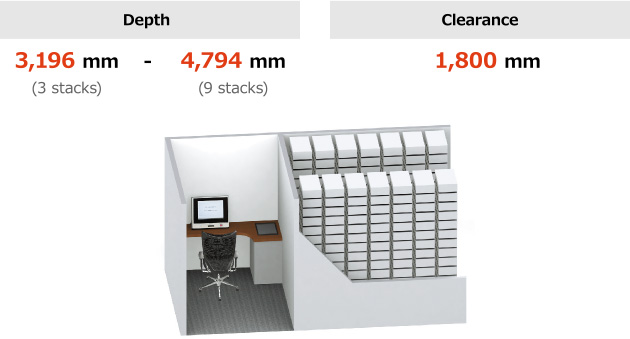

Front installation type
Supports nine stacks.Best for a location that makes good use of the depth.

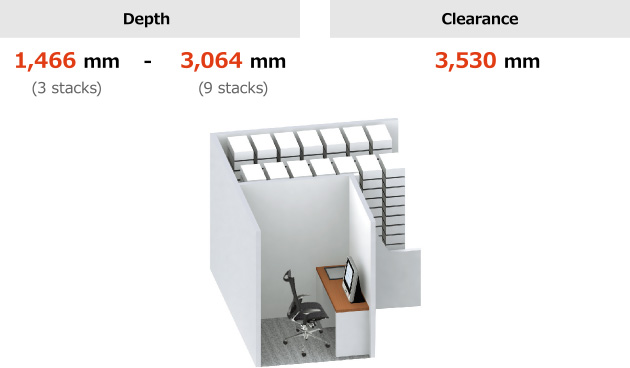

Side installation type
Supports a clearance of 3,530 mm.Best for a location with limited depth.
Front Installation
Side Installation

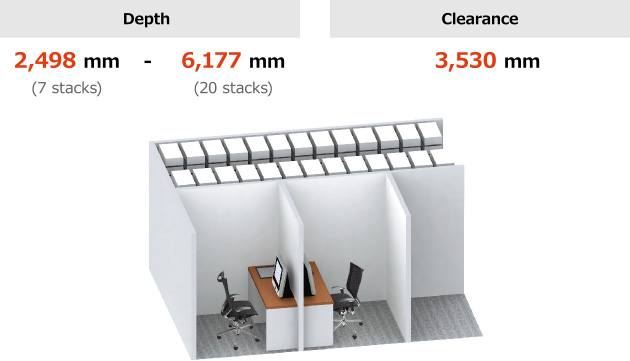

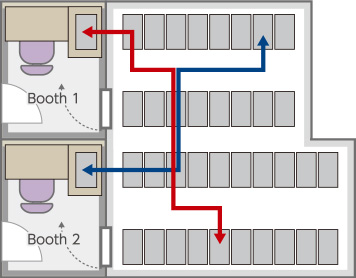

Safe deposit boxes can expand from 346 boxes to 1,448 boxes and seven stacks to 20 stacks.
Side installation type
Supports up to six booths.Best for a location requiring large capacity storage.
It can be deployed in anticipation of multiple variations and future expansion.

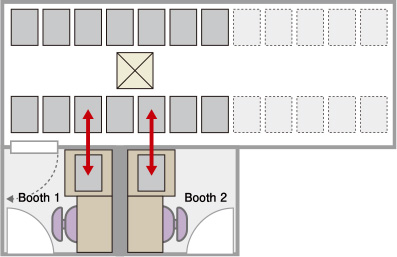

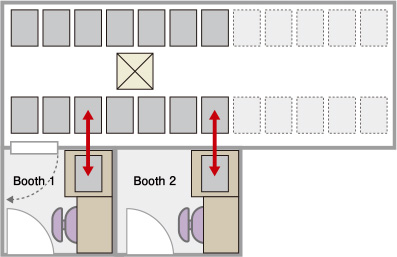

Side Installation type
Side Installation type

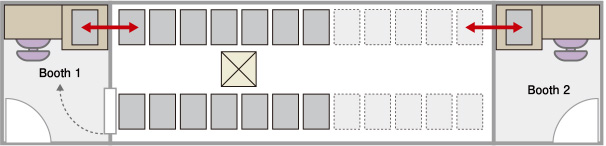

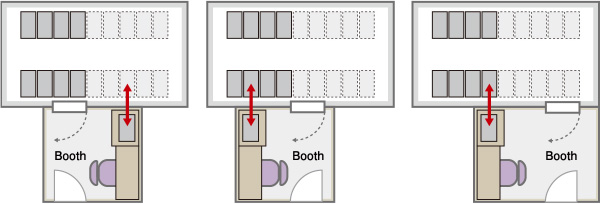

Other Examples of booth installation
*We offer various patterns to meet building layouts for the installation location of booths. Please feel free to consult us.
Multiway access allows for flexible operation.

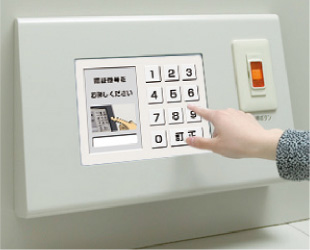

Operation guide panel
Easy-to-use and see the 15-inch LCD touch panel.
Adopts a 15-inch LCD panel
with UD fonts.

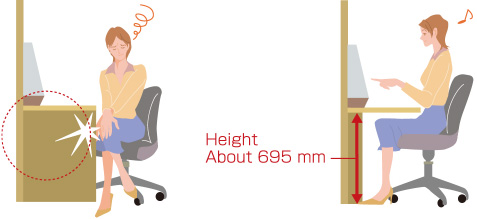

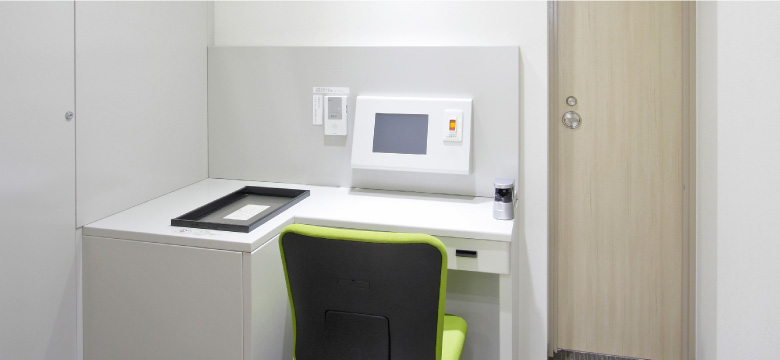

Booth design
Ensures excellent interior comfort and usability.
The bottom of the desk is designed to be
leg-free for spacious leg room.
Operational flow
Easy and smooth operation usability
-
Entry check
The customer presents a safe deposit box access card to the booth entry reader at the entrance to gain entry. -
Card verification after entry
After checking the information on the card, the customer enters the booth and inserts the access card into the customer input device. -
PIN input
From the LCD touch panel, the customer enters PIN for verification of identify. -
Using a safe deposit box
The customer waits for the arrival of a safe deposit box and opens the box. -
Using the LCD touch panel for return and exit
The customer follows the instructions displayed on the LCD touch panel to return the box and exit the booth.
