Safe Deposit System Type-C
Movable SDB
Fuji Seikoʼs semiautomatic Type-C safe deposit box combines a high level of security and saves space. This type supports both an unattended reception system for smooth use like an ATM and an attended reception system that stresses the importance of interactions with customers.
Features
An equivalent level of security with a bank vault
Special protection materials fill the entire vault to provide resistance to fracture and fire resistance for equivalent performance as bank vault facilities.
Equipped with a one-hundred million conversion combination dial and time lock (option) to ensure peace of mind in an emergency.
Time lock (option)
Space-saving and shorter construction period
There are two types: Clam type vault and magic door-type vault.
Because this is shipped as a finished product, the model allows the installation of safe deposit boxes within a shorter construction period.
Safe deposit boxes and safety functions
Each box is Fuji Seikoʼs VE-type (vertical type) 76 mm in height (standard). Inside each box is a storage container with enhanced strength and accuracy.
A red light turns on when the bank lock is unlocked by reception operation.
After use, the customerʼs key cannot be pulled out without closing the boxʼs door completely.
The customerʼs key will not lock the box when the inner box is returned backwards.
*For example, an envelope (A4 size) with strings fits in the box.

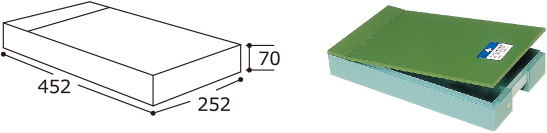

| Outer measurement of a inner box (mm) | |||
|---|---|---|---|
| Type | Height | Width | Depth |
| Type 1 | 70 | 252 | 552 |
| Type 2 | 120 | 252 | 552 |
| Type 3 | 190 | 252 | 552 |
*The Type 1 is standard and the Types 2 and 3 are optional.
Lineup

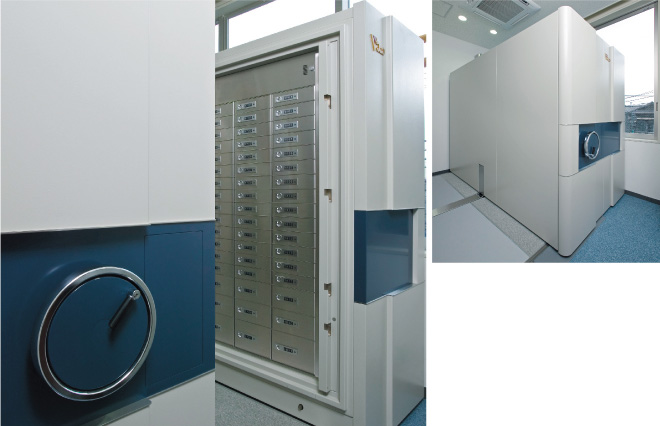

V300II
The highest grade in the V Series, floor-standing type safe deposit boxes.
The model consists of a clam type/secured vault (one unit) and movable vault (one unit).
The operation uses a round steering wheel for simple operation of the movable vault.
Vertical-type safe deposit boxes: 320 boxes
Fire-resistant performance: Two hours
Option: Time lock (two movements 144H) and pull shelf.

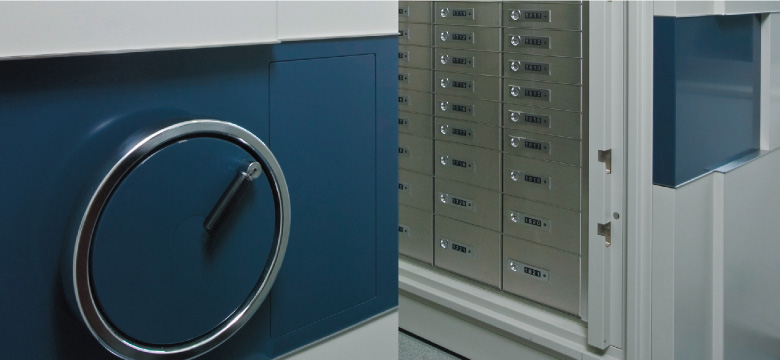

Round steering wheel and one-hundred million conversion combination dial
Stopper pedal

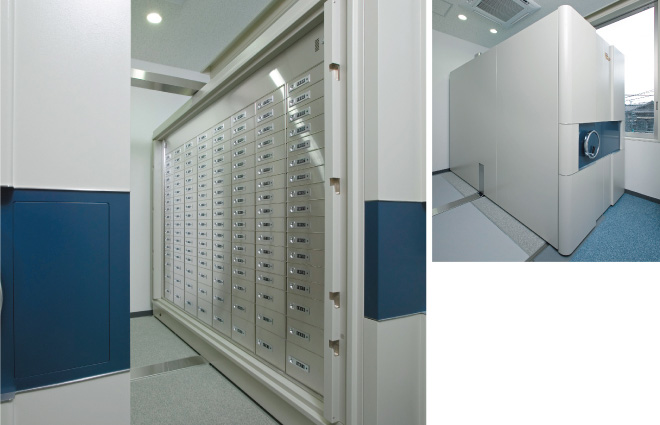

V200II
Lightweight, compact, clam type vault.
The model consists of a clam type/secured vault (one unit) and movable vault (one unit).
The operation uses a round steering wheel for simple operation of the movable vault.
Vertical-type safe deposit boxes: 200 boxes
Fire-resistant performance: Two hours
Option: Time lock (two movements 144H) and pull shelf.
V100II
Excellent space-saving effect and security equivalent to safe deposit boxes room.
Double magic door type: Left and right front doors are installed on each side of the vault.
Vertical-type safe deposit boxes:
100 boxes Fire-resistant performance: Two hours
Pull shelf (stand-up type shelf board for a inner box)
Key case (Hidden type)
Option: Time lock (two movements 144H)
Pull shelf (stand-up type shelf board for a inner box)
Key case (Hidden type)

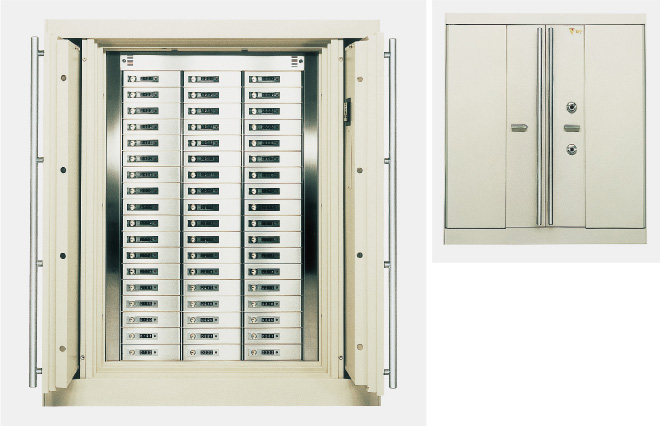

V54II
Offering significant space-saving solution, the model comes with magic doors (door storage type).
Double magic door type: Left and right front doors are installed on each side of the vault.
Vertical-type safe deposit boxes: 54 boxes
Fire-resistant performance: Three hours
Option: Time lock (two movements 144H).

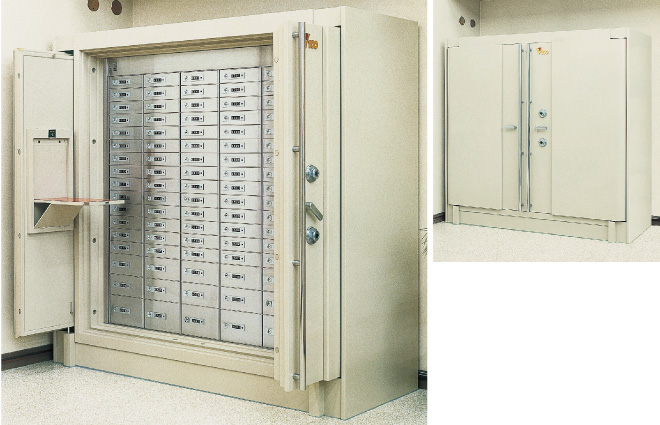

VR54II・VL54II
While supporting the expansion of safe deposit boxes in the future, the model delivers easy expansion of existing safe deposit box operation for operators.
Single-opening magic door type: The door can be stored to the side of the vault when opened. (VR54 II has a right-hand door and VL54 II has a left-hand door.)
The opening width of 2,790 mm allows for efficient installation planning.
Vertical-type safe deposit boxes: 54 boxes
Fire-resistant performance: Three hours
Option: Time lock (two movements 144H).
