Slide Lock System II
Renovation system for existing traditional safe deposit boxes to semi automatic Model
Slide Lock System II can be installed on an existing safe deposit boxes for unattended operation. In addition to simple, convenient use like an ATM, the system offers improved operation efficiency by saving labor.
Features
Slide Lock System II can be installed on an existing manual safe deposit boxes. The installation is completed in a short amount of time without opening the safe deposit box. After installation, customers operate the safe deposit box unattended.
The system saves significant labor and streamlines safe deposit box operation along with a further improvement in the control function.
The use status of safe deposit boxes is observed and checked from an administratorʼs computer set up in a sales office. It also prints out all records and summary data and sounds an alarm in an emergency.
Users can be checked using an anteroom card reader and key station. After verification of identity, an electronic key for using a safe deposit box is automatically issued.
-
1

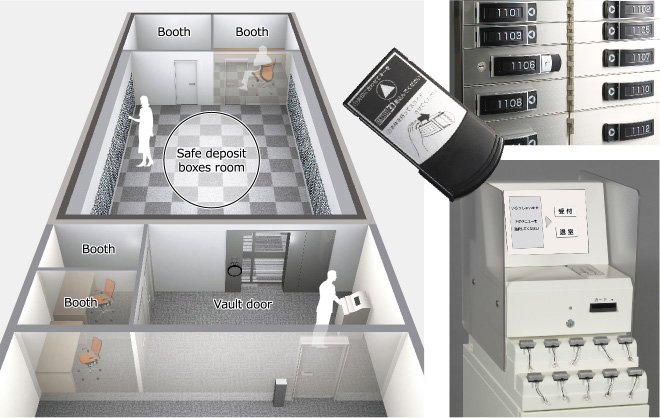

Entry to a safe deposit boxes room
Users insert the safe deposit boxes card into the anteroom card reader.
-
2
Verification of identity
Users insert the safe deposit boxes card into the key station and enter PIN.
-
3
Issuance of an electronic key
After verification of identity with the safe deposit box card and PIN, each user is issued an electronic key with encoded personal information for using the safe deposit box under contract.
-
4
Unlocking the safe deposit box
Using an electronic key and customerʼs key, open the safe deposit box door.
-
5
Using the safe deposit box → Return
After taking out the inner box and using it, return it back and lock with the customer's key and slide lockII.
-
6
Returning the electronic key → Exit
After use, the user can exit the room by returning the electronic key.
Concurrently, the encoded information inside the electronic key is deleted automatically.

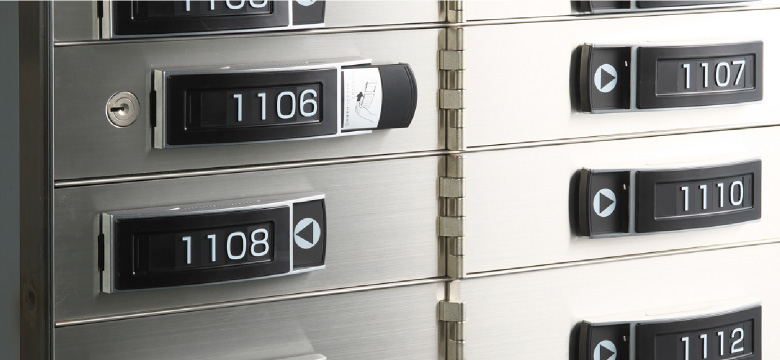

Safe deposit boxes installed with the Slide Lock II
The electronic key issued at the key station is used to slide the Slide Lock II to use the safe deposit boxes.

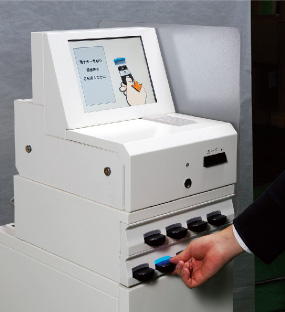

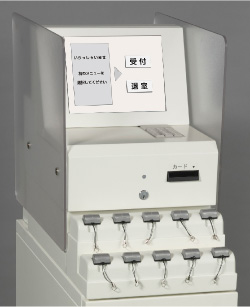

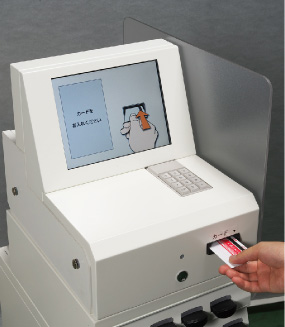

Key station
This terminal manages the issuance and return of electronic keys, as well as the operation of the electronic lock.
The terminal issues the electronic key by matching the safe deposit boxes card and PIN.
Electronic key
The key controls the unlocking of the Slide Lock II.
The individual information written on the electronic key is erased automatically when returned to ensure security.

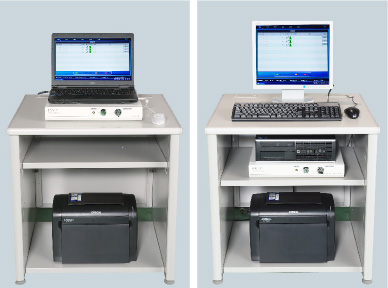

Administratorʼs computer
The computer is set up in a sales office for signing up new users and discontinuation.
Automatic creation of daily reports and other management materials.
The computer prevents security leaks by encrypting customer information.

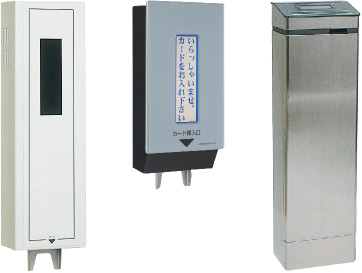

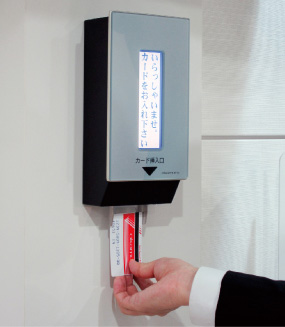

Anteroom card reader
The reader is installed at the entrance to the safe deposit boxes anteroom to determine the authority to enter using a card.
